615-362-1

615-362-1

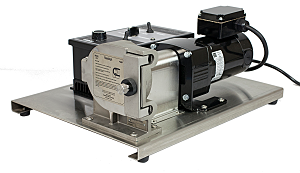

The 615 Variflow™ pumps are available in three speed ranges; 3 to 125 rpm, 6 to 250 rpm, and 12 to 500 rpm.  Each assembly comes mounted onto a stainless steel base with a ¼ HP, 130 VDC motor.  The control is a PWM control in a NEMA 4X enclosure.  The suffix number on the part assembly denotes the  speed control configuration. The Dash – 1 control is available with as a single direction control with a manual speed control.

Model  Speed Range
615-332-1 3 to 125 RPM
615-352-1 6 to 250 RPM
615-362-1 12 - 500 RPM



P/N Description P/N Description
C037062 Cilran -  3/8" ID x 5/8" OD C050075 Cilran -  1/2" ID x 3/4" OD
ED037062 ED-Plex - 3/8" ID x 5/8" OD ED050075 ED-Plex - 1/2" ID x 3/4" OD
PC037062 Vytex - 3/8" ID x 5/8" OD PC050075 Vytex - 1/2" ID x 3/4" OD
PA037062 Povinal - 3/8" ID x 5/8" OD PA050075 Povinal - 1/2" ID x 3/4" OD
US037062 Prothane - 3/8" ID x 5/8" OD US050075 Prothane - 1/2" ID x 3/4" OD
