PRODUCT CATALOG
615-101

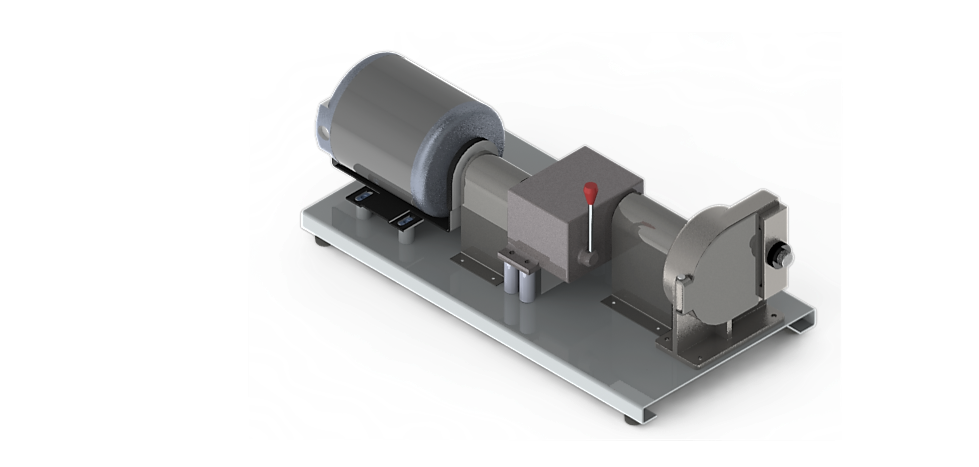

Model 615-101 is a direct drive peristaltic pump assembly with, 615 Stainless Pump, 1/4 HP motor, and Zero-Max™ mechanical speed reducer, mounted onto stainless steel base. The pump has an output speed range of 0-400 rpm with a counter clockwise rotational output. It is an excellent choice for applications that require a speed control without the expense of a DC or AC speed control and motor. Excellent for food, dairy, harsh chemical and other transfer applications. Tubing sizes and types listed below
| P/N | Description | P/N | Description |
| C037062 | Cilran - 3/8" ID x 5/8" OD | C050075 | Cilran - 1/2" ID x 3/4" OD |
| ED037062 | ED-Plex - 3/8" ID x 5/8" OD | ED050075 | ED-Plex - 1/2" ID x 3/4" OD |
| PC037062 | Vytex - 3/8" ID x 5/8" OD | PC050075 | Vytex - 1/2" ID x 3/4" OD |
| PA037062 | Povinal - 3/8" ID x 5/8" OD | PA050075 | Povinal - 1/2" ID x 3/4" OD |
| US037062 | Prothane - 3/8" ID x 5/8" OD | US050075 | Prothane - 1/2" ID x 3/4" OD |
