PRODUCT CATALOG
500-362-2

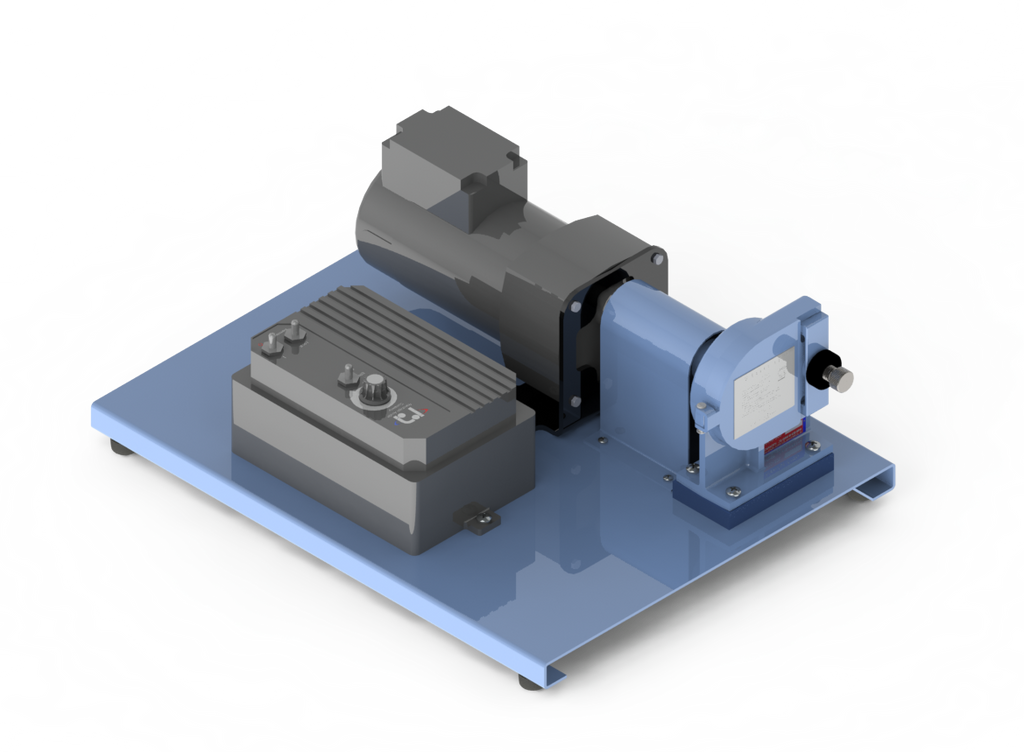

The 500 Variflow™ pumps are available in three speed ranges; 3 to 125 rpm, 6 to 250 rpm, and 12 to 500 rpm. Each assembly comes mounted onto a steel base with a ¼ HP, 130 VDC motor. The control is a PWM control in a NEMA 4X enclosure. The suffix number on the part assembly denotes the speed control configuration. The Dash – 2 control is available with a FWD/REV selector switch and a manual speed control.
| 500-332-2 | 3 to 125 RPM |
| 500-352-2 | 6 to 250 RPM |
| 500-362-2 | 12 - 500 RPM |
| P/N | Description | P/N | Description |
| C018037 | Cilran - 3/16" ID x 3/8" | C025043 | Cilran - 1/4" ID x 7/16" OD |
| ED018037 | ED-Plex - 3/16" ID x 3/8" | ED025043 | ED-Plex - 1/4" ID x 7/16" OD |
| PC018037 | Vytex - 3/16" ID x 3/8" | PC025043 | Vytex - 1/4" ID x 7/16" OD |
| PA018037 | Povinal - 3/16" ID x 3/8" | PA025043 | Povinal - 1/4" ID x 7/16" OD |
| US018037 | Prothane -3/16" ID x 3/8" | US025043 | Prothane - 1/4" ID x 7/16" OD |
