PRODUCT CATALOG
500-101

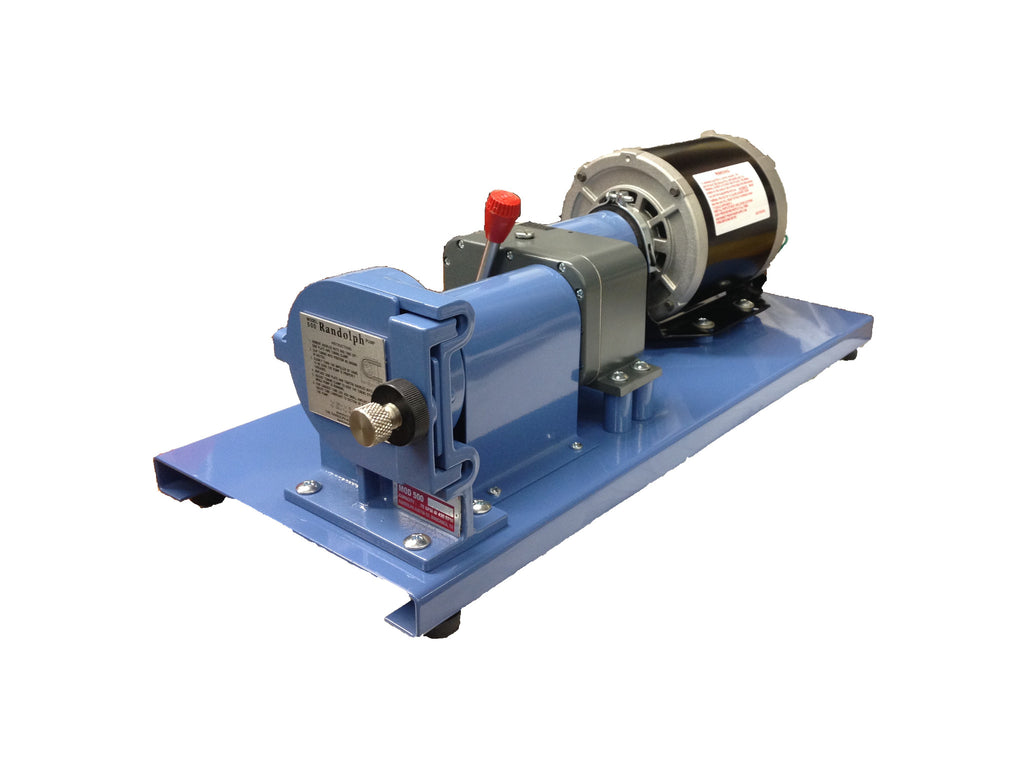

The 500-101 is a direct drive unit with a manual speed control which provides speed regulation from 0 to 400 rpm. The pump is mounted on a steel base with a 1/4 HP, 115 VAC, 1 Ph, ODP motor and a Zero-Max™ speed control. The Zero-Max™ provides speed regulation from 0 to 400 rpm through the manual adjustment of a lever on the speed control. The 500-101 provides excellent speed regulation in a single direction. The 500-101 is a great choice for applications that require speed regulation in a cost effective and rugged assembly package. Applications include flexographic, slurry, chemical feed and transfer applications. The 500-101 utilizes either a 3/16" ID x 3/8" OD or 1/4" ID x 7/16" OD flexible tubing.
| P/N | Description | P/N | Description |
| C018037 | Cilran - 3/16" ID x 3/8" | C025043 | Cilran - 1/4" ID x 7/16" OD |
| ED018037 | ED-Plex - 3/16" ID x 3/8" | ED025043 | ED-Plex - 1/4" ID x 7/16" OD |
| PC018037 | Vytex - 3/16" ID x 3/8" | PC025043 | Vytex - 1/4" ID x 7/16" OD |
| PA018037 | Povinal - 3/16" ID x 3/8" | PA025043 | Povinal - 1/4" ID x 7/16" OD |
| US018037 | Prothane -3/16" ID x 3/8" | US025043 | Prothane - 1/4" ID x 7/16" OD |
