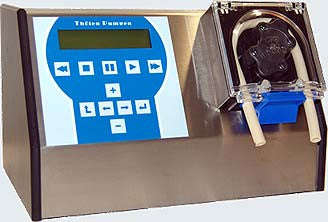

The TP4000V is a fully programmable peristaltic pump designed for dosing or small batch filling operation.  The pump can interface with a computer or PLC or receive a remote start stop signal for a foot switch or other device.  Mounted in a stainless steel cabinet with the TP4000 pump this assembly makes it easy to change tubing.  The dimension for the pump are 13.2" (335 mm) W x 8.3" (210 mm) H x 9.5" (240 mm) D.  Each pump weighs approximately 16 lbs (7.3 Kilos).

The standard TP4000E is designed to use either a 1/4" or 5/16" ID tubing with a 3/32" Wall.  The pump head can be ordered or modified with a special impeller yoke for use with a 3/8" ID x 1/8" wall tubing

                           TP4000E  Flow Rates and Model Numbers  -  Flow rate in ml/min
Model Number RPM Power Specs  1/4" ID  Max Flow 5/16" ID Max Flow 3/8" ID Max Flow
SDTP-4000V-1 300 115 VAC / 60 Hz 2068 ml 2684 ml 3492 ml
SDTP-4000V-2 300 230 VAC / 50 Hz 2068 ml 2684 ml 3492 ml
