630-PHO

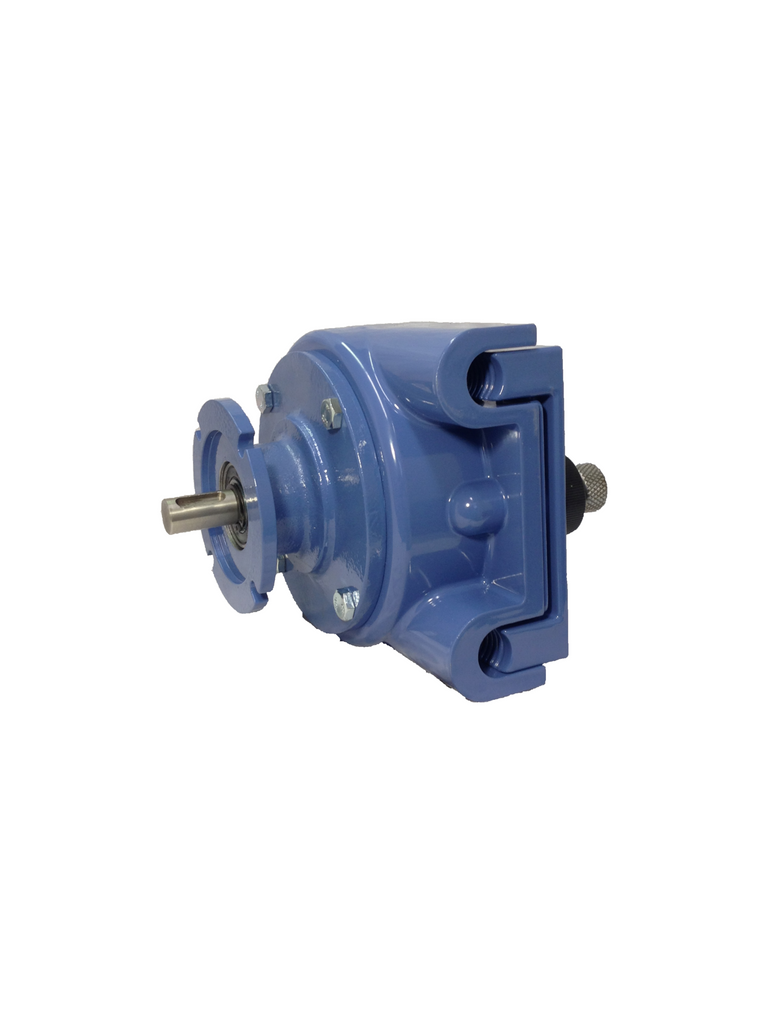

Pump head machined from a cast aluminum housing with a stainless steel impeller plate and shaft and rollers sleeved in PET-P The 630 pump head has a 14mm stub shaft that is designed to mount directly onto a right angle reducer with a 63B14 input flange. With a flow rate of 2.3 GPM with the 5/8" ID tubing and 3.7 GPM with 3/4" ID at 430 rpm, the 630 offers a reduced footprint for industrial, flexographic ink and chemical feed applications. Tubing types and sizes listed below:
| P/N | Description | P/N | Description |
| C037062 | Cilran - 3/8" ID x 5/8" OD | C050075 | Cilran - 1/2" ID x 3/4" OD |
| ED037062 | ED-Plex - 3/8" ID x 5/8" OD | ED050075 | ED-Plex - 1/2" ID x 3/4" OD |
| PC037062 | Vytex - 3/8" ID x 5/8" OD | PC050075 | Vytex - 1/2" ID x 3/4" OD |
| PA037062 | Povinal - 3/8" ID x 5/8" OD | PA050075 | Povinal - 1/2" ID x 3/4" OD |
| US037062 | Prothane - 3/8" ID x 5/8" OD | US050075 | Prothane - 1/2" ID x 3/4" OD |
