PRODUCT CATALOG
400-362-1

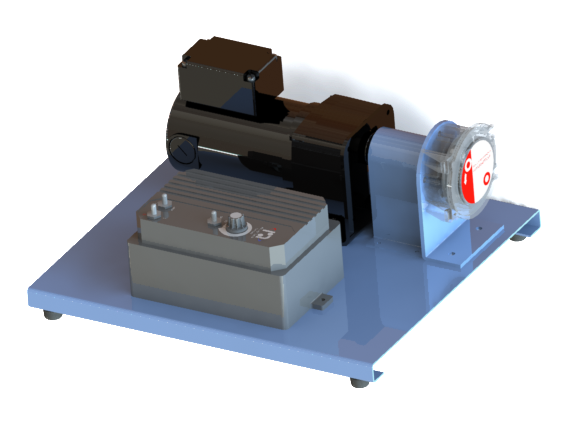

The 400 Variflow™ pumps are available in three speed ranges; 3 to 125 rpm, 6 to 250 rpm, and 12 to 500 rpm. Each assembly comes mounted onto a steel base with a ¼ HP, 130 VDC motor. The control is a PWM control in a NEMA 4X enclosure. The suffix number on the part assembly denotes the speed control configuration. The Dash – 1 control is available with as a single direction control with a manual speed control.
| 400-332-1 | 3 to 125 RPM |
| 400-352-1 | 6 to 250 RPM |
| 400-362-1 | 12 - 500 RPM |
| P/N | Description |
| C025043 | Cilran - 1/4" ID x 7/16" OD |
| ED025043 | ED-Plex - 1/4" ID x 7/16" OD |
| PC025043 | Vytex - 1/4" ID x 7/16" OD |
| PA025043 | Povinal - 1/4" ID x 7/16" OD |
| US025043 | Prothane - 1/4" ID x 7/16" OD |
