250-342-3

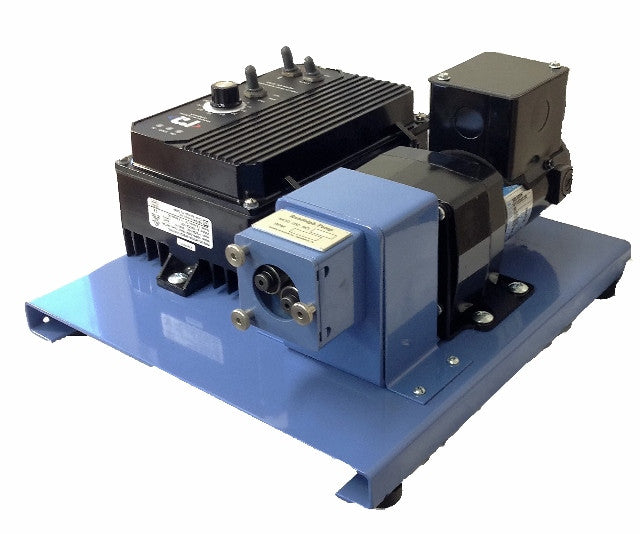

The 250-342-3 is a direct drive variable speed peristaltic pump assembly. The pump comes with a NEMA 4X control and DC permanent magnet motor mounted on a steel base. The dash 3 control allows for the greatest flexibility with a Local/Remote selector that allows for a 4-20 mA or 0-10 VDC remote input as well as a Forward/Reverse switch. The control allows for integration into process control applications. The 250-342-3 is a very rugged peristaltic pump that is capable of precise flow delivery. Applications include laboratory, industrial and chemical feed.
| Tubing Types, Part Number and Sizes | |||
| Cilran - C006018 | 1/16" ID X 3/16" OD | Cilran - C012025 | 1/8" ID X 1/4" OD |
| ED-Plex - ED006018 | 1/16" ID X 3/16" OD | Ed-Plex - ED012025 | 1/8" ID X 1/4" OD |
| Povinal - PA006018 | 1/16" ID X 3/16" OD | Povinal - PA012025 | 1/8" ID X 1/4" OD |
| Vytex - PC006018 | 1/16" ID X 3/16" OD | Vytex - PC012025 | 1/8" ID X 1/4" OD |
| Prothane - US006018 | 1/16" ID X 3/16" OD | Prothane - US012025 | 1/8" ID X 1/4" OD |
